5 Ensembles

5.1 Monte Carlo Simulations in the Isothermal-Isobaric (NPT) and Grand Canonical (\(\mu \)VT) Ensembles

Isothermal-Isobaric (NPT)

In this section, we consider how to conduct Monte Carlo simulation in ensembles other than the canonical ensemble. In deriving the partition function for the canonical ensemble (Eq. 30), we imagined our sytem of constant \(N\), \(V\), and \(T\) in thermal contact with a large reservoir. This thermal contact allowed the system and reservoir to exchange energy such that the system remained at constant \(T\), and what resulted was the Boltzmann factor. In Section 5.4.1, F&S explain the case when we have the reservoir and the system both thermally and mechanically coupled. The mechanical coupling allows the volume of the system to change such that the pressure in the system is the same as the reservoir, which is again considered as an inifinite ideal gas. In addition to thermostatting our system, the reservoir acts as a barostat.

First, for convenience, we express the set of coordinates, \({\bf r}^N\), scaled by the box length, \(L\), as \({\bf s}^N\). The partition function in the NPT ensemble is then \begin{equation} Q\left (N,P,T\right ) = \frac {\beta P}{\Lambda ^{3N}N!} \int dV V^N \exp \left (-\beta PV\right ) \int d{\bf s}^N \exp \left [-\beta \mathscr {U}\left ({\bf s}^N;L\right )\right ] \end{equation} The free energy associated with this ensemble is the Gibbs free energy: \begin{equation} G = -k_BT\ln Q\left (N,P,T\right ) \end{equation}

Now, compared to the canonical ensemble, in the NPT ensemble, volume is an additional degree of freedom. We need the probability distribution to include volume:

We can use this new Boltzmann factor in an acceptance rule for a Monte Carlo trial move involving a simple volume change from \(V\) to \(V + \Delta V\), where \(\Delta V\) is randomly chosen from \([-\Delta V_{max},\Delta V_{max}]\): \begin{equation} \mbox {acc}\left (o\rightarrow n\right ) = \min \left (1,\exp \left \{ -\beta \left [\mathscr {U}\left ({\bf s}^N,V^\prime \right )-\mathscr {U}\left ({\bf s}^N,V\right )+P\left (V-V^\prime \right )-N\beta ^{-1}\ln \left (V^\prime /V\right )\right ]\right \}\right ) \end{equation}

We can also consider trial move that changes the logarithm of the box size from \(\ln V\) to \(\ln V + \Delta \left (\ln V\right )\). In this case, the integral of \(V^N\) over \(dV\) is re-expressed as an integral of \(V^{N+1}\) over \(d\ln V\), and the acceptance rule is the same as the one above except for a factor of \((N+1)\) multiplying \(\beta ^{-1}\), instead of \(N\).

The C-code mclj_npt.c implements an NPT MC simulation of the Lennard-Jones liquid using both particle displacements and log-\(V\) displacements. For each cycle, there is a \(1/(N+1)\) probability that a trial move is a volume displacement. The trial move generates a random displacement, computes a new box length, rescales all particle positions, scales the cutoff radius, and recomputes the tail corrections and shift, if applicable. If the Metropolis criterion is not met after a random number is selected, then all of these operations are undone. Otherwise, the new box size with the newly scaled particle positions is kept. The particle displacement algorithm is the same as in mclj.c.

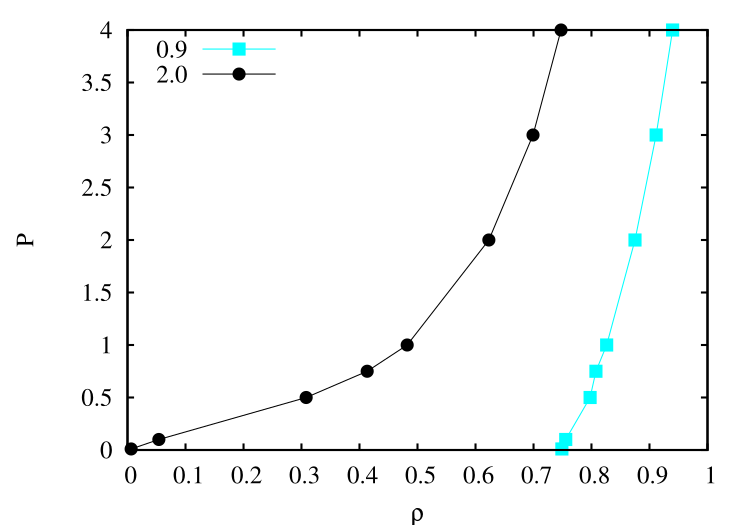

As an exercise, you can use the code to regenerate Figure 5.3 in the text, which is again a slice through the phase diagram of the Lennard-Jones fluid at \(T\) = 2.0. This temperature is above the critical tempeerature, so we do not anticipate a phase transition at the pressures investigated. However, we saw that when we considered \(T\) = 0.9 using the NVT MC simulation, negative pressures were predicted, indicating that the system would have liked to phase separate but couldn’t due to its fixed density and finite size. That is, at the density specified, there might not be enough particles to “nucleate” the denser of the two phases. NPT simulations in principle offer a way around that by allowing the system density to fluctuate.

I ran the code with \(N\) = 108 particles for 10\(^6\) cycles. ¹ The log-volume maximum displacement was set at 0.25, and the maximum particle displacement varied from 0.3 for \(P\), to 0.5 at the lowest value of \(P\). You can see from the figure below that the data at \(T\) = 2.0 is equally well reproduced here as it was using conventional NVT MC. However, for \(T\) = 0.9, we notice that the densities which arise are clearly indicate a high-density phase is prevalent. As suggested in F&S, this code also computes the pressure from the virial, and the measured pressure and imposed pressures agreed, as you can see from the table.

Imposed and measured pressures from 10\(^6\)-cycle NPT MC simulations of the Lennard-Jones fluid with \(N\) = 108 and \(T\) = 2.0.

For temperatures near the critical temperature, we would expect the fluctuations in density to be maximum. As an exercise, you can modify mclj_npt.c to compute the average fluctuations in \(\rho \).

Grand Canonical (\(\mu \)VT)

So we see that volume exchanges with an ideal gas reservoir can be used to fix the pressure of a test system. Similarly, particle exchanges with an ideal gas reservoir can be used to fix the chemical potential of a test system. Chemical potential is defined as the change in free energy with particle number: \begin{equation} \mu = \frac {\partial F}{\partial N} \end{equation} Thus, as reciprocal temperature, \(\beta \), is conjugate to entropy, \(S\), and pressure, \(P\), is conjugate to volume, \(V\), chemical potential, \(\mu \), is conjugate to number of particles, \(N\). An ensemble in which \(\mu \), \(V\), and \(T\) are fixed is referred to as the “grand canonical” ensemble.

For an ideal gas, we know that the NVT partition function is given by \begin{equation} Q^{i.g.}\left (N,V,T\right ) = \frac {V^N}{\Lambda ^{3N}N!} \end{equation} Because \(F = -1/\beta \ln Q\), and for an ideal gas, \(N/V = \rho = \beta P\), it is straightforward to show that \begin{equation} \mu ^{i.g.} = k_BT\ln \Lambda ^3\rho = \mu ^0 - \ln \beta p \end{equation} This leads to the conventional definition of the excess chemical potential; that is, the difference in chemical potential of the material of interest and an ideal gas at the same density. \begin{equation} \mu ^{ex} = \mu - \mu ^{i.g.} \end{equation}

Sec. 5.6 in F&S is devoted to explaining the implementation of a grand canonical MC simulation. The basic idea is that we allow our system to interact with an ideal gas system at a fixed \(\mu \) (which is related to a fixed \(P\), as discussed in Appendix G) by exchanging particles. The appropriate probability density is \begin{equation} \mathscr {N}_{\mu VT}\left ({\bf s}^N; N\right ) \propto \frac {\exp \left (\beta \mu N\right )V^N}{\Lambda ^{3N}N!} \exp \left [-\beta \mathscr {U}\left ({\bf s}^N\right )\right ] \end{equation}

To implement a random walk with this probability distribution, in addition to the normal particle displacement moves, we also have insertion and removal of particles with appropriate acceptance ratios:

So, we can specify \(\mu \) of the ideal gas bath, specify \(V\) and \(T\), and conduct a grand canonical MC simulation, and measure pressure, density, and excess chemical potential in our system of interest. The code for Case Study 9 in F&S is available at the book’s website. As an exercise, and to have an opportunity to see how someone else writes a simulation code, I recommend that you download this program and try to compile and run it. You will see three directories: Run, Source, and Block; Source contains the FORTRAN source code, and Run contains input files and a run script. Block contains the code for computing block averages; my version of this code is flyvbjerg.c. The file you download is CaseStudy_9.tar.gz, which is a gzipped tar archive (sometimes referred to as a “tarball”). You can unpack it under Cygwin using

cfa@abrams01:/home/cfa> tar zvxf CaseStudy_9.tar.gz

Then, to compile, change directory into CaseStudy_9/Source, and use the make command:

cfa@abrams01:/home/cfa> cd CaseStudy_9/Source
cfa@abrams01:/home/cfa/CaseStudy_9/Source> make clean
cfa@abrams01:/home/cfa/CaseStudy_9/Source> make

The make clean command removes the object files (those that end with o), which are presumably included because F&S assume you are going to run on a Linux PC. The second make compiles the program. You should repeat this procedure in the Block directory to build the block average program, which is used in the run script. Then, you can change directory to the Run directory and begin simulating.

We can run this code by specifying the pressure of the ideal gas bath, the temperature, and the initial density and number of particles, which sets the volume. The run script, run, has a loop structure in it (a “foreach” loop) which in principle allows the user to run multiple bath pressures. The output is appended to a file called out, which you can process (using grep, for example) to extract results. Simply add more ideal gas pressures in the parentheses:

foreach pid  (0.016 0.032 0.064 )

There is, however, a little bug in the run script. The copy command (the first command in the script) should be inside the loop, because the last command in the body of the loop removes all files whose name begin with “fort.” Original:

cp lj.model        fort.25
foreach pid  (0.016 )
[remainder]

Correct:

foreach pid  (0.016 )
  cp lj.model        fort.25
[remainder]

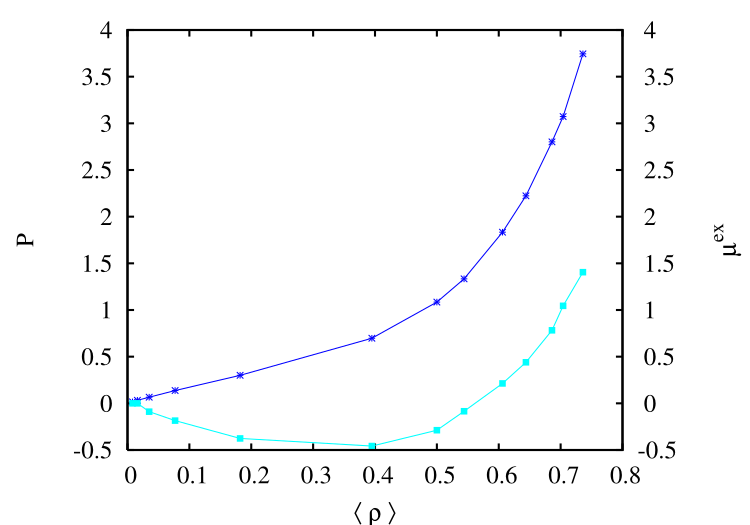

I ran this code for ideal gas bath pressures of 0.016, 0.032, 0.064, 0.128, 0.25, 0.50, 0.75, 1.0, 1.5, 2.0, 3.0, 4.0, 6.0, at a temperature \(T\) = 2.0 for 20,000 cycles and for \(N\) = 108 particles with an initial density of 0.6 (\(V\) = 180.0). The results are below:

5.2 Molecular Dynamics at Constant Temperature

Conventional MD simulation conserves total energy; hence, the time averages computed from MD simulation, if it is long enough, are equivalent to ensemble averages computed from the microcanonical ensemble. The flexibility of MD is greatly enhanced by noting that it is not restricted to NVE. There exist techniques by which MD can simulate in the NVT or NPT ensembles as well. We will consider some popular temperature control schemes, and one popular pressure control scheme, in this section.

There are essentially three ways to control the temperature in an MD simulation:

1. Scaling velocities (e.g. simple velocity scaling and the Berendsen thermostat)
2. Adding stochastic forces and/or velocities (e.g., the Andersen, Langevin, and Dissipative Particle Dynamics thermostats)
3. Using “extended Lagrangian” formalisms (e.g., the Nosé-Hoover thermostat)

Each of these classes of schemes has advantages and disadvantages, depending on the application. In the following subsections, we consider several examples of thermostats, and attempt to discuss their advantages and drawbacks. A simple barostat is also described in the last section.

5.2.1 Velocity Scaling: Isokinetics and the Berendsen Thermostat

First, velocity scaling schemes do not strictly follow the canonical ensemble, though in practice, the amount they deviate from canonical is quite small. (This can be measured by comparing the velocity distribution function with a Gaussian.) It is relatively easy to implement the second class of schemes, because they can be “dropped” in to existing codes using almost any integrator. However, they suffer the drawback that they are not time-reversible or deterministic, properties that become important in some advanced MD techniques. The third class are slightly more difficult to implement, but do not suffer from such drawbacks as time-irreversibility.

We have in effect already encountered simple velocity scaling in mdlj.c, in the initialization function. Here, particle velocities are chosen randomly from \([-0.5,0.5]\) and the rescaled to result in a desired temperature given by the relation: \begin{equation} \label {eq:mdens1} \frac {3}{2}Nk_BT = \frac {1}{2}\sum _im_iv_i^2 \end{equation} We could, if we wanted to, turn this into a dynamic scheme for continually keeping the velocities scaled such that the total kinetic energy is constant. We can measure the instaneous temperature immediately after a velocity update, and call it \(T_i\). Eq. 126 indicates that if we scale velocities by a constant \(\lambda \), where \begin{equation} \lambda = \sqrt {\left (T/T_i\right )} \end{equation} we will be left with a system at temperature \(T\). Velocity scaling to maintain constant \(\mathscr {K}\) is called an isokinetic thermostat. Such a thermostat cannot be used to conduct a simulation in the canonical ensemble, but is perfectly fine to use in a warmup or initialization phase. We could perform velocity rescaling at every step, or only every few steps. As a suggested exercise, modify mdlj.c to perform velocity scaling to a user-specified setpoint temperature every \(m\) time steps, where \(m\) is a user-defined interval between velocity scaling events. Begin with system at \(T\) = 1.0, and command it to jump to \(T\) = 3.0 after 1,000 steps. How does the system behave, and is it sensitive to your choice of \(m\)?

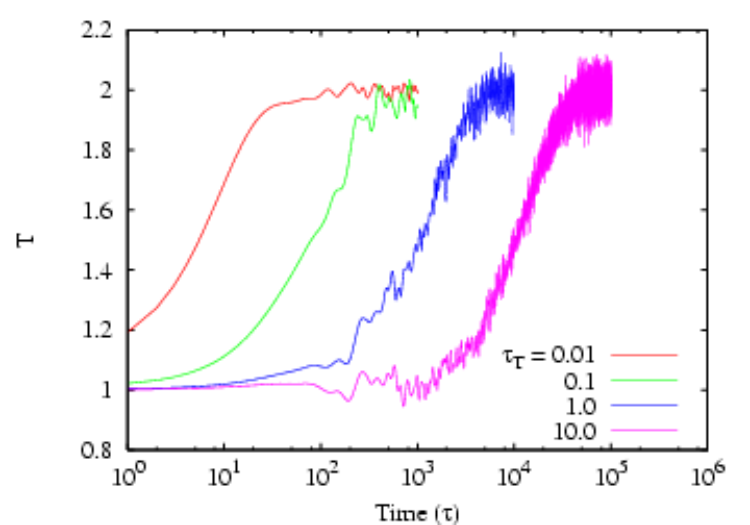

Another popular velocity scaling thermostat is that of Berendsen [10]. Here, the scale factor is given by \begin{equation} \lambda = \left [1+\frac {\Delta t}{\tau _T}\left (\frac {T}{T_0} - 1\right )\right ]^{\frac {1}{2}} \end{equation} Here, \(T_0\) is the setpoint temperature, \(\Delta t\) is the integration time step, and \(\tau _T\) is a constant called the “rise time” of the thermostat. It describes the strength of the coupling of the system to a hypothetical heat bath. The larger \(\tau _T\), the weaker the coupling; in other words, the larger \(\tau _T\), the longer it takes to achieve a given \(T_0\) after an instantaneous change from some previous \(T_0\). The code mdlj_ber.c implements the Berendsen thermostat. As a brief exercise, you can experiment with this code to get a feeling for how various values of the rise time affect the response of the system when the setpoint temperature is changed instantaneously from 1.0 to 2.0. Below is a lin-log plot of just such an experiment with \(N\) = 256 particles at a density of 0.5. Each curve corresponds to a different value of \(\tau _T\), and they increase by factors of 10. The corresponding time at which the setpoint \(T\) is reached is also seen to increase by the same factor.

Though relatively simple, velocity scaling thermostats are not recommended for use in production MD runs because they do not strictly conform to the canonical ensemble.

5.2.2 Stochastic NVT Thermostats: Andersen, Langevin, and Dissipative Particle Dynamics

The Andersen Scheme. Perhaps the simplest thermostat which does correctly sample the NVT ensemble is due to Andersen [11]. Here, at each step, some prescribed number of particles is selected, and their momenta (actually, their velocities) are drawn from a Gaussian distribution at the prescribed temperature: \begin{equation} \label {eq:ens:gaus} \mathscr {P}(p) = \left (\frac {\beta }{2\pi m}\right )^{3/2} \exp \left [-\beta p^2/\left (2m\right )\right ] \end{equation} This is intended to mimic collisions with bath particles at a specified \(T\). The strength of the coupling to the heat bath is specified by a collision frequency, \(\nu \). For each particle, a random variate is selected between 0 and 1. If this variate is less than \(\nu \Delta t\), then that particle’s momenta are reset.

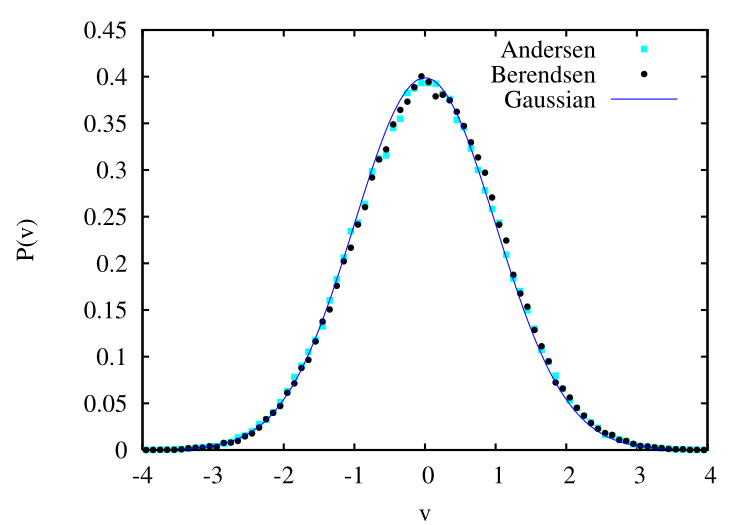

The code mdlj_and.c implements the Andersen thermostat with the velocity Verlet algorithm for the Lennard-Jones fluid. I was curious about the importance placed on the fact that a Gaussian distribution of velocities is established during an MD simulation using the Andersen thermostat. F&S seem to indicate that the truth of this fact means that we are sampling the canonical ensemble. But they do not show data for the Berendsen thermostat, for which we should not sample NVT. The figure below is a comparison of the measured velocity distribution for a 20,000-step run at \(T\) = 1.0 and \(\rho = 0.8442\) using the Berendsen thermostat with \(\tau = 0.1\) and a similar run with the Andersen thermostat with \(\nu = 0.01\). Apparently, the Berendsen thermostat also reproduces the correct distribution.

Although they may not be on the right track with regard to the velocity distributions, F&S do make a very good point with regard to measuring transport properties from NVT MD simulations. The Andersen thermostat destroys momentum transport because of the random velocities; hence, there is no continuity of momentum in an Andersen LJ fluid, and therefore no proper \(\mathscr {D}\) or viscosity. The data they cite in Fig. 6.3 clearly shows that \(\mathscr {D}\), if measured from an Andersen MD run, is incorrect.

The Langevin thermostat. In the “Langevin” thermostat, at each time step all particles receive a random force and have their velocities lowered using a constant friction. [12] The average magnitude of the random forces and the friction are related in a particular way, which guarantees that the “fluctuation-dissipation” theorem is obeyed, thereby guaranteeing NVT statistics.

In this formalism, the particle-\(i\) equation of motion is modified: \begin{equation} \label {ens:md:lang} m\ddot {\bf r}_i = -\nabla _i U - m\Gamma \dot {\bf r}_i + {\bf W}_i\left (t\right ) \end{equation} Here, \(\Gamma \) is a friction coefficient with units of \(\tau ^{-1}\), and \({\bf W}_i\) is a random force that is uncorrelated in time and across particles, with a mean given by \begin{equation} \left \langle {\bf W}_i\left (t\right ),{\bf W}_j\left (t^\prime \right )\right \rangle = \delta _{ij}\delta \left (t-t^\prime \right )6k_BmT\Gamma \end{equation}

The code mdlj_lan.c implements the Langevin thermostat. The two major elements are a force initialization at each time step that adds in the random forces, \(\bf W\), and a slight modification to the update equations in the integrator to include the effect of \(\Gamma \). Note that the initialization of forces in the force routine has been removed.

One advantage of the Langevin thermostat (and to a limited extent, the Andersen thermostat and other stochastic-based thermostats) is that we can get away with a larger time step than in NVE simulations. At a density of \(\rho \) = 0.8442 and a mean temperature \(T\) = 1.0, an NVE simulation is unstable for time-steps above about \(\Delta t\) = 0.004. We can, however, run a Langevin dynamics simulation with a friction \(\Gamma \) = 1.0 stably with a time-step as large as \(\Delta t\) = 0.01 or even higher. This has proven invaluable in simulations of more complicated systems that simple liquids, namely linear polymers, which have very long relaxation times. MD with the Langevin thermostat is the method of choice for equilibrating samples of liquids of long bead-spring polymer chains.

Of course, the drawback of most stochastic thermostats (one exception is discussed next) is that momentum transfer is destroyed. So again, it is unadvisable to use Langeving or Andersen thermostats for runs in which you wish to compute diffusion coefficients. I echo the recommendation of F&S: when possible, use NVE to compute properties, and use thermostats for equilibration only.

The Dissipative Particle Dynamics thermostat. The DPD thermostat [13, 14] adds pairwise random and dissipative forces to all particles, and has been shown to preserve momentum transport. Hence, it is the only stochastic thermostat so far that should even be considered for use if one wishes to compute transport properties.

The DPD thermostat is implemented by slight modification of the force routine to add in the pairwise random and dissipative forces. For the \(ij\) pair, the dissipative force is defined as \begin{equation} {\bf f}_{ij}^D = -\gamma \omega ^D\left (r_{ij}\right )\left ({\bf v}_{ij}\cdot \hat {\bf r}_{ij}\right )\hat {\bf r}_{ij} \end{equation} Here, \(\gamma \) is a friction coefficient, \(\omega \) is a cut-off function for the force as a function of the scalar distance between \(i\) and \(j\) which simply limits the interaction range of the dissipative (and random) forces, \({\bf v}_{ij} = {\bf v}_i - {\bf v}_j\) is the relative velocity of \(i\) to \(j\), and \(\hat {\bf r}_{ij} = {\bf r}_{ij}/r_{ij}\) is the unit vector pointing from \(j\) to \(i\). The random force is defined as \begin{equation} {\bf f}_{ij}^R = \sigma \omega ^R\left (r_{ij}\right )\zeta _{ij}\hat {\bf r}_{ij} \end{equation} Here, \(\sigma \) is the strength of the random force, \(\omega ^R\) is a cut-off, and \(\zeta _{ij}\) is a Gaussian random number with zero mean and unit variance, and \(\zeta _{ij} = \zeta _{ji}\).

The update of velocity uses these new forces: \begin{equation} \label {eq:dpd_update} {\bf v}_i\left (t + \Delta t\right ) = {\bf v}_i\left (t\right ) - \frac {\Delta t}{m}\nabla _iU + \frac {\Delta t}{m}{\bf f}_i^D + \frac {\sqrt {\Delta t}}{m}{\bf f}_i^R \end{equation} where

The parameters \(\gamma \) and \(\sigma \) are linked by a fluctuation-dissipation theorem: \begin{equation} \sigma ^2 = 2\gamma k_B T \end{equation} So, in practice, one must specify either \(\gamma \) or \(\sigma \), and then a setpoint temperature, \(T\), in order to use the DPD thermostat.

The cutoff functions are also related: \begin{equation} \omega ^D\left (r_{ij}\right ) = \left [\omega ^R\left (r_{ij}\right )\right ]^2 \end{equation} This is the only real constraint on the cutoffs; we are otherwise allowed to use any cutoff we like. The simplest uses the cutoff radius of the pair potential, \(r_c\): \begin{equation} \omega \left (r\right ) = \begin {cases} 1 & r < r_c\\ 0 & r > r_c \end {cases} \end{equation} Note that, with this choice, \(\left [\omega ^R\left (r_{ij}\right )\right ]^2\) = \(\omega ^R\left (r_{ij}\right )\) = \(\omega ^D\left (r_{ij}\right ) = \omega \).

The code mdlj_dpd.c implements the DPD thermostat in an MD simulation of the Lennard-Jones liquid. The major changes (compared to mdlj.c) are to the force routine, which now requires several more arguments, including particle velocities, and parameters for the thermostat. Inside the pair loop, the force on each particle is updated by the conservative, dissipative, and random pairwise force components. The random force is divided by \(\sqrt {\Delta t}\) so that the velocity Verlet algorithm need not be altered to implement Eq. 134.

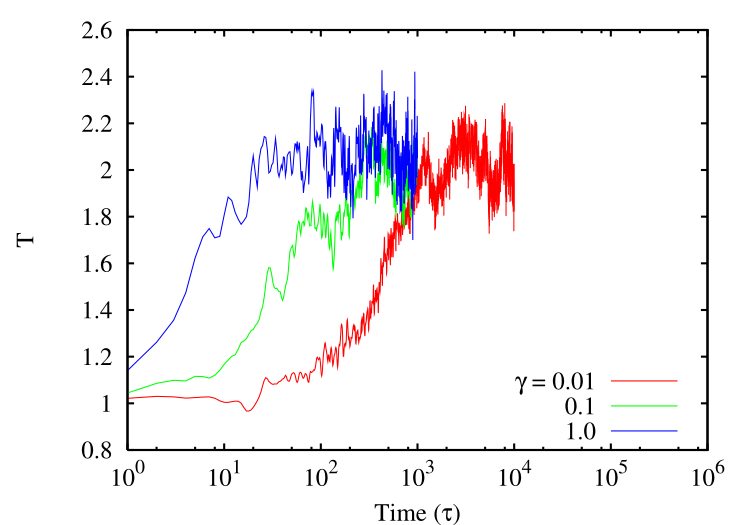

The behavior of the DPD thermostat can be assessed in a similar fashion as was the Berendsen thermostat above. Below is a lin-log plot of system temperature after the setpoint is changed from 1.0 to 2.0, for a Lennard-Jones system \(N\) = 256 and \(\rho \) = 0.8442. Again, each curve corresponds to a different value of \(\gamma \), and they increase by factors of 10. The corresponding time at which the setpoint \(T\) is reached is also seen to increase by the same factor.

If you have been paying attention, you will notice that in all implementations given here, the thermostat is applied each and every time step. In principle, one could modulate the strength of a thermostat by controlling the frequency with which it is applied. As an exercise, you can pick one of these implementations and modify it such that the thermostat is applied once per \(M\) time steps, where \(M\) is specified on the command-line. You can compare the performance of the thermostat in the same way we have already seen (time required to go from \(T\) = 1.0 to \(T\) = 2.0 upon an instantaneous change in the setpoint \(T\)) for a given friction or strength and for various values of \(M\).

5.2.3 The Nosé-Hoover Chain

The final thermostat we consider is one based on the extended Lagrangian formalism, which leads to a deterministic trajectory; i.e., there are no random forces or velocities to deal with. The most common and so far most reliable thermostat of this kind is the Nosé-Hoover thermostat. This thermostat can be implemented as a “single” or a “chain”; here, we consider a chain.

The basic idea of the Nosé-Hoover thermostat is to use a friction factor to control particle velocities. This friction factor is actually the scaled velocity, \(v_{\xi _1}\), of an additional and dimensionless degree of freedom, \(\xi _1\). This degree of freedom has an associated “mass”, \(Q_1\), which effectively determines the strength of the thermostat. The equations of motion obeyed by this additional degree of freedom guarantee that the original degrees of freedom (\({\bf r}^N\), \({\bf p}^N\)) sample a canonical ensemble. This degree of freedom is the terminus of a chain of similar degrees of freedom, each with their own mass. The chain has a total of \(M\) “links.” The overall set of equations of motion are:

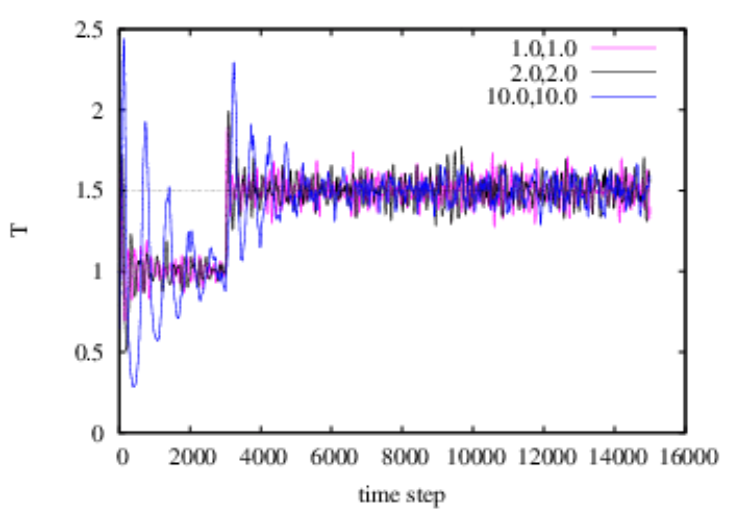

The main advantage of the Nosé-Hoover chain thermostat is that the dynamics of all degrees of freedom are deterministic and time-reversible. No random numbers are used. The code mdlj_nhc.c implements an \(M\) = 2 Nosé-Hoover chain thermostat in an MD simulation of an Lennard-Jones fluid, by implementing Algorithms 30, 31, and 32 from F&S. The two masses of the thermostats are defaulted to \(Q_1\) = \(Q_2\) = 0.1. This “low” mass results in a “loose” control of temperature; higher masses mean a tighter control. \(\xi _1\) is the degree of freedom whose velocity is used to scale particle velocities, so one might hypothesize that the mass \(Q_1\) is the more important. (You can verify this as an exercise.) Though I haven’t verified that my code is 100% bug-free, apparently, the effect of increasing the mass of the coupling degree of freedom is to lengthen the decay time constant of the response to an instantaneous temperature jump:

If anyone finds a bug in this code, I will buy you a refreshing beverage of your choice.

5.3 Molecular Dynamics at Constant Pressure: The Berendsen Barostat

As with temperature control, there are different classes of pressure control for MD simulation. The only one we consider here is the length-scaling technique of Berendsen. It should be noted that one can also use the the extended Nosé-Hoover (extended Lagrangian) formalism of Martyna, which is mentioned in F&S; in the interest of time, we will forego a discussion of this technique.

Here we consider implementation of the Berendsen barostat [10]. Recall that the working definition of instantaneous pressure, \(P\), is given by: \begin{equation} P = \rho T + {\rm vir}/V \end{equation} where \(\rm vir\) is the virial: \begin{equation} {\rm vir} = \frac {1}{3}\sum _{i>j} {\bf f}\left (r_{ij}\right )\cdot {\bf r}_{ij} \end{equation} and \(V\) is the system volume. \({\bf f}\left (r_{ij}\right )\) is the force exerted on particle \(i\) by particle \(j\).

Consider a cubic system, where \(V = L^3\). The Berendsen barostat uses a scale factor, \(\mu \), which is a function of \(P\), to scale lengths in the system:

\(\mu \) is given by \begin{equation} \mu = \left [1-\frac {\Delta t}{\tau _P}\left (P_0 - P\right )\right ]^{1/3} \end{equation} Here, \(\Delta t\) is the integrator time-step, \(\tau _P\) is the “rise time” of the barostat, and \(P_0\) is the setpoint pressure. Berendsen discusses the tensor-based analog for non-cubic systems [10].

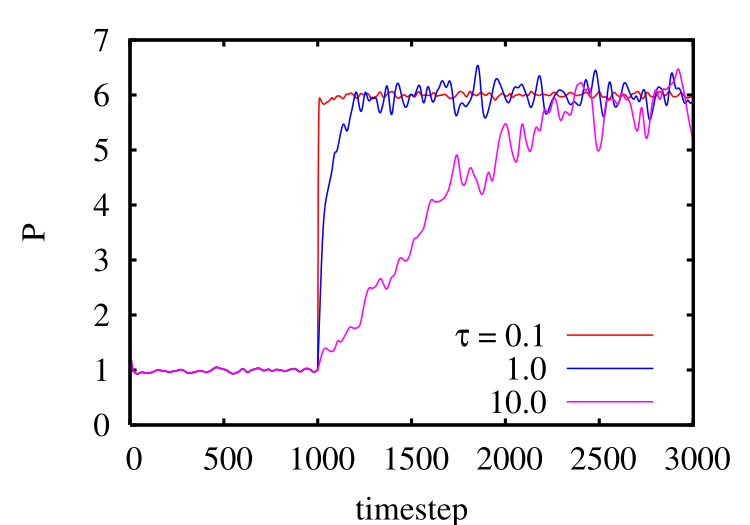

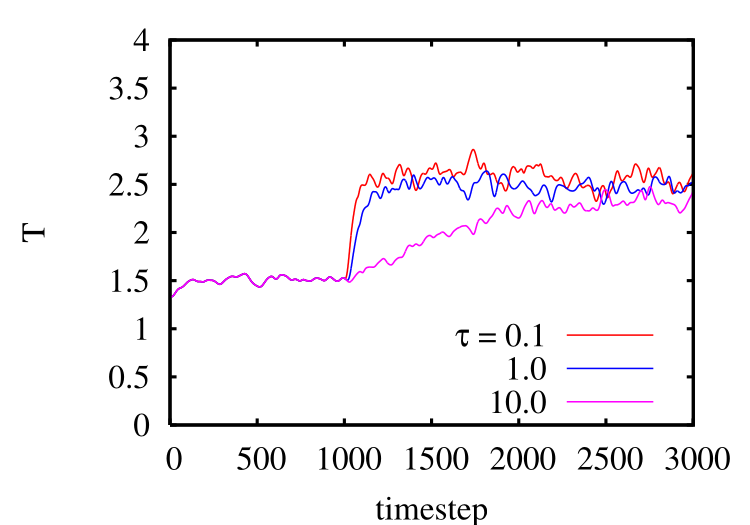

The code mdlj_berp.c implements the Berendsen barostat. Below, I show results of using the Berendsen barostat to induce a pressure jump from 1.0 to 6.0 in a sample of LJ fluid, for various values of the rise time, \(\tau _P\). Notice that temperature is not controlled, but rises from about 1.3 to 2.5 due to the increase of pressure.

Length scaling at each time step using a global scale factor, while effective in this instance, can be lead to violent oscillations of pressure in more ordered systems, and is therefore not recommended for production MD runs. However, it is common to find length scaling barostats used in the literature without reporting how effective they are, measured at least in terms of pressure and its fluctuations. But they can be useful for pre-equilibrating samples at some \(P\) prior to beginning an NVE simulation during which one hopes the instantaneous pressure fluctuates about the previous setpoint. It is easy to implement both the Berendsen thermostat and barostat in the same simulation program, to allow pre-equilibration at setpoint \(T\) and \(P\).
