6 Ensembles
6.1 Monte Carlo Simulations in the Isothermal-Isobaric and Grand Canonical Ensembles
6.1.1 Isothermal-Isobaric
In this section, we consider how to conduct Monte Carlo simulation in ensembles other than the canonical ensemble. In deriving the partition function for the canonical ensemble (Eq. 33), we imagined our sytem of constant \(N\), \(V\), and \(T\) in thermal contact with a large reservoir. This thermal contact allowed the system and reservoir to exchange energy such that the system remained at constant \(T\), and what resulted was the Boltzmann factor. In Section 5.4.1, F&S explain the case when we have the reservoir and the system both thermally and mechanically coupled. The mechanical coupling allows the volume of the system to change such that the pressure in the system is the same as the reservoir, which is again considered as an inifinite ideal gas. In addition to thermostatting our system, the reservoir acts as a barostat.
First, for convenience, we express the set of coordinates, \({\bf r}^N\), scaled by the box length, \(L\), as \({\bf s}^N\). The partition function in the NPT ensemble is then \begin{equation} Q\left (N,P,T\right ) = \frac {\beta P}{\Lambda ^{3N}N!} \int dV V^N \exp \left (-\beta PV\right ) \int d{\bf s}^N \exp \left [-\beta \mathscr {U}\left ({\bf s}^N;L\right )\right ] \end{equation} The free energy associated with this ensemble is the Gibbs free energy: \begin{equation} G = -k_BT\ln Q\left (N,P,T\right ) \end{equation}
Now, compared to the canonical ensemble, in the NPT ensemble, volume is an additional degree of freedom. We need the probability distribution to include volume:
We can use this new Boltzmann factor in an acceptance rule for a Monte Carlo trial move involving a simple volume change from \(V\) to \(V + \Delta V\), where \(\Delta V\) is randomly chosen from \([-\Delta V_{max},\Delta V_{max}]\): \begin{equation} \mbox {acc}\left (o\rightarrow n\right ) = \min \left (1,\exp \left \{ -\beta \left [\mathscr {U}\left ({\bf s}^N,V^\prime \right )-\mathscr {U}\left ({\bf s}^N,V\right )+P\left (V-V^\prime \right )-N\beta ^{-1}\ln \left (V^\prime /V\right )\right ]\right \}\right ) \end{equation}
We can also consider trial move that changes the logarithm of the box size from \(\ln V\) to \(\ln V + \Delta \left (\ln V\right )\). In this case, the integral of \(V^N\) over \(dV\) is re-expressed as an integral of \(V^{N+1}\) over \(d\ln V\), and the acceptance rule is the same as the one above except for a factor of \((N+1)\) multiplying \(\beta ^{-1}\), instead of \(N\).
The C-code mclj_npt.c implements an NPT MC simulation of the Lennard-Jones liquid using both particle
displacements and log-\(V\) displacements. For each cycle, there is a \(1/(N+1)\) probability that a trial move is a volume
displacement. The trial move generates a random displacement, computes a new box length, rescales all
particle positions, scales the cutoff radius, and recomputes the tail corrections and shift, if applicable. If the
Metropolis criterion is not met after a random number is selected, then all of these operations are undone.
Otherwise, the new box size with the newly scaled particle positions is kept. The particle displacement
algorithm is the same as in mclj.c.

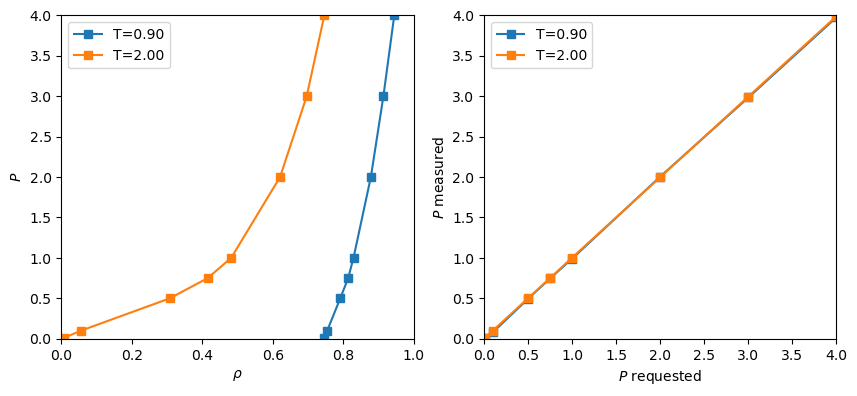

As an exercise, you can use the code to regenerate Figure 5.3 in the text, which is again a slice through the phase diagram of the Lennard-Jones fluid at \(T\) = 2.0. This temperature is above the critical tempeerature, so we do not anticipate a phase transition at the pressures investigated. However, we saw that when we considered \(T\) = 0.9 using the NVT MC simulation, negative pressures were predicted, indicating that the system would have liked to phase separate but couldn’t due to its fixed density and finite size. That is, at the density specified, there might not be enough particles to “nucleate” the denser of the two phases. NPT simulations in principle offer a way around that by allowing the system density to fluctuate.
I ran the code with \(N\) = 108 particles for 10\(^6\) cycles (Note that I have changed my definition of “cycle”. Before, one “cycle” was \(N\) moves; now it is a single move. This distinction isn’t important for now, but I thought you’d like to be made aware.) The log-volume maximum displacement was set at 0.25, and the maximum particle displacement varied from 0.3 for \(P\), to 0.5 at the lowest value of \(P\). You can see from Fig. 20 that the data at \(T\) = 2.0 is equally well reproduced here as it was using conventional NVT MC (Fig. 13). However, for \(T\) = 0.9, we notice that the densities which arise are clearly indicate a high-density phase is prevalent. (Indeed, we saw in NVT simulations that forcing a \(T\)=0.9 system to exist at densities below about 0.75 resulted in negative pressures!) This code also computes the pressure from the virial, and the measured pressure and imposed pressures agreed, as you can see from the right-hand panel in Fig. 20.
For temperatures near the critical temperature, we would expect the fluctuations in density to be
maximum. As an exercise, you can modify mclj_npt.c to compute the average fluctuations in
\(\rho \).
6.1.2 Grand Canonical
So we see that volume exchanges with an ideal gas reservoir can be used to fix the pressure of a test system. Similarly, particle exchanges with an ideal gas reservoir can be used to fix the chemical potential \(\mu \) of a test system. Chemical potential is defined as the change in free energy with particle number: \begin{equation} \mu = \frac {\partial F}{\partial N} \end{equation} Thus, as reciprocal temperature, \(\beta \), is conjugate to entropy, \(S\), and pressure, \(P\), is conjugate to volume, \(V\), chemical potential, \(\mu \), is conjugate to number of particles, \(N\). An ensemble in which \(\mu \), \(V\), and \(T\) are fixed is referred to as the “grand canonical” ensemble.
For an ideal gas, we know that the NVT partition function is given by \begin{equation} Q^{i.g.}\left (N,V,T\right ) = \frac {V^N}{\Lambda ^{3N}N!} \end{equation} Because \(F = \beta ^{-1} \ln Q\), it is straightforward to show for the ideal gas that \begin{equation} \beta P = \rho \end{equation} and \begin{equation} \mu ^{\rm i.g.} = k_BT\ln \Lambda ^3\rho = \mu ^0 + k_BT\ln \beta P \end{equation} where \begin{equation} \mu ^0 \equiv k_BT\ln \Lambda ^3. \end{equation} The conventional definition of the excess chemical potential, or the difference in chemical potential of the material of interest and an ideal gas at the same density, is \begin{equation} \mu ^{\rm ex} = \mu - \mu ^{\rm i.g.} = \mu -\mu ^0 - k_BT\ln \beta P \end{equation} To keep things clean, we will specify a relative chemical potential defined as \begin{equation} \mu ^\prime \equiv \mu - \mu ^0 \end{equation} giving the definition of the excess as \begin{equation} \beta \mu ^{\rm ex} \equiv \beta \mu ^\prime - \ln \beta P \end{equation}
To implement a grand canonical MC simulation, the basic idea is that we allow our system to interact with an ideal gas system at a fixed \(P\) (which is related to a fixed \(\mu \), as discussed above) by exchanging particles. The appropriate probability density is \begin{equation} \mathscr {N}_{\mu VT}\left ({\bf s}^N; N\right ) \propto \frac {\exp \left (\beta \mu N\right )V^N}{\Lambda ^{3N}N!} \exp \left [-\beta \mathscr {U}\left ({\bf s}^N\right )\right ] = \frac {V}{N}\exp \left [-\beta \left (\mathscr {U}-\mu ^\prime N\right )\right ] \end{equation}
To implement a random walk with this probability distribution, in addition to the normal particle displacement moves, we also have insertion and removal of particles with appropriate acceptance ratios:
So, we can specify \(\mu ^\prime \) of the ideal gas bath, system volume \(V\) and temperature \(T\), and conduct a grand canonical
MC simulation from which we can observe measure pressure, density, and excess chemical potential in our
system of interest. The code mclj_muvt.c implements grand canonical MC for the Lennard-Jones
fluid.
It is instructive to run this code with various values of \(\mu ^\prime \). For example, at \(T\) = 2.0 and \(\mu ^\prime \) = -2.0, an initially 512-particle system at \(\rho \) = 0.6 becomes a 436-particle systems at \(\rho \) = 0.54:
$ ./mclj_muvt -N 512 -rho 0.6 -T 2 -mu -2 \ -disp-wt 0.5 -nc 50000 -dr 0.5 -s 124521 -ne 1000 -rc 3.5 -prog 0 # muVT MC Simulation of a Lennard-Jones fluid # L = 9.48505; rho0 = 0.60000; mu’ = -2.00000; N0 = 512; rc = 3.50000 # nCycles 50000, nEq 1000, seed 124521, dR 0.50000 NPT Metropolis Monte Carlo Simulation of the Lennard-Jones fluid in the Grand Canonical Ensemble --------------------------------------------- Number of cycles: 51000 Maximum particle displacement: 0.50000 Displacement weight: 0.50000 Temperature: 2.00000 Relative chemical potential: -2.00000 Initial number of particles: 512 Tail corrections used? Yes Shifted potentials used? No Results: Final number of particles: 408 Displacement attempts: 26058 Insertion attempts: 12384 Deletion attempts: 12558 Acceptance ratio, ptcl displ: 0.47981 Acceptance ratio, insertion: 0.08648 Acceptance ratio, deletion: 0.09357 Overall acceptance ratio: 0.28920 Energy/particle: -3.31911 Density: 0.50063 Computed pressure: 0.96980 Excess chemical potential: -0.61622 Program ends.
Why does the number of particles go down? The system is being asked to find an equilibrium in which the chemical potential is negative, yet we are apparently starting it at a state where it is more positive, so the system sheds particles. That is, our initial density corresponds to a system of higher chemical potential than what we are asking for. Conversely, if initialize at a lower density, say 0.4, then we see the number of particles increases:
$ ./mclj_muvt -N 512 -rho 0.4 -T 2 -mu -2 \ -disp-wt 0.5 -nc 50000 -dr 0.5 -s 124521 -ne 1000 -rc 3.5 -prog 0 # muVT MC Simulation of a Lennard-Jones fluid # L = 10.85767; rho0 = 0.40000; mu’ = -2.00000; N0 = 512; rc = 3.50000 # nCycles 50000, nEq 1000, seed 124521, dR 0.50000 NPT Metropolis Monte Carlo Simulation of the Lennard-Jones fluid in the Grand Canonical Ensemble --------------------------------------------- Number of cycles: 51000 Maximum particle displacement: 0.50000 Displacement weight: 0.50000 Temperature: 2.00000 Relative chemical potential: -2.00000 Initial number of particles: 512 Tail corrections used? Yes Shifted potentials used? No Results: Final number of particles: 598 Displacement attempts: 26058 Insertion attempts: 12384 Deletion attempts: 12558 Acceptance ratio, ptcl displ: 0.54885 Acceptance ratio, insertion: 0.12766 Acceptance ratio, deletion: 0.11905 Overall acceptance ratio: 0.34075 Energy/particle: -2.62249 Density: 0.44318 Computed pressure: 0.88387 Excess chemical potential: -0.37246 Program ends.
Note that while these two runs purportedly aim for the same equilibrium state, they don’t converge there.
The second run converges to a lower pressure and more positive excess chemical potential than the first run
does. This is partially due to the fact that they are different sizes so there are random errors, but it is also due to
the fact that grand canonical MC simulations take a relatively long time to reach equilibrium compared to NVT
MC. In practice, it can take many hundreds of thousands of cycles to generate reproducible measurements in

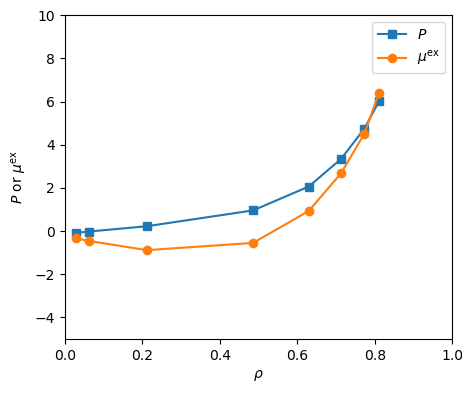

\(\mu \)VT MC. Fig. 21 shows isotherms at \(T\) = 2.0 of pressure and excess chemical potential for the LJ fluid computed
using mclg_muvt.c. These were computed using three independent trials per data point. This matches Fig. 5.8
in F&S [1].
6.2 Molecular Dynamics at Constant Temperature
Conventional MD simulation conserves total energy; hence, the time averages computed from MD simulation, if it is long enough, are equivalent to ensemble averages computed from the microcanonical ensemble. The flexibility of MD is greatly enhanced by noting that it is not restricted to NVE. There exist techniques by which MD can simulate in the NVT or NPT ensembles as well. We will consider some popular temperature control schemes, and one popular pressure control scheme, in this section.
There are essentially three ways to control the temperature in an MD simulation:
- 1.
- Velocity rescaling;
- 2.
- Stochastic forces and/or velocities; and
- 3.
- “Extended Lagrangian” formalisms.
Each of these classes of schemes has advantages and disadvantages, depending on the application. In the following subsections, we consider several examples of thermostats, and attempt to discuss their advantages and drawbacks. A simple barostat is also described in the last section.
6.2.1 Temperature Fluctuations in the Canonicial Ensemble
Before considering how to fiddle with particle velocities or forces to enforce constant temperature, it is worth considering what statistical thermodynamics has to say about temperature. When we have direct knowledge of instantaneous particle velocities, we know that the kinetic energy is \begin{equation} \mathscr {K} = \sum _{i=1}^{N} \sum _{\alpha \in \left \{x,y,z\right \}}\frac {p_{i,\alpha }^2}{2m} \equiv \sum _{j=1}^{3N}\frac {p_j^2}{2m} \end{equation} where we recognize that all momentum components are independent variables. We also know that temperature (in reduced units) is directly proportional to kinetic energy: \begin{equation} \frac {3}{2}NT = \mathscr {K} \end{equation} With this equivalence, we can consider the “instantaneous” temperature as \begin{equation} T = \frac {2}{3N}\sum _{j=1}^{3N}\frac {p_j^2}{2m} \end{equation} Since momenta must fluctuate it is necessarily the case that instantaneous temperature also fluctuates. Let’s see how much.
First, since all momenta are independent, it follows from the definition of the canonical partition function that a particle momentum component \(p_j\) follows the Maxwell-Boltzmann distribution: \begin{equation} \rho (p_j) = \left (\frac {\beta }{2\pi m}\right )^{\frac 32}\exp \left (-\frac {\beta p_j^2}{2m}\right ) \end{equation} We can characterize fluctuations in \(p_j^2\) by dividing its variance \(\sigma _{p_j^2}\) to the square of its average \(\langle p_j^2\rangle ^2\). The variance is defined \begin{equation} \sigma _{p_j^2} = \langle p_j^4\rangle -\langle p_j^2\rangle \end{equation} Using the Maxwell-Boltzmann distribution: \begin{equation} \langle p_j^2\rangle = \int _{-\infty }^{\infty }dp_j p_j^2 \exp \left (-\frac {\beta p_j^2}{2m}\right ) = \frac {3m}{\beta } \end{equation} and \begin{equation} \langle p_j^4\rangle = \int _{-\infty }^{\infty }dp_j p_j^4 \exp \left (-\frac {\beta p_j^4}{2m}\right ) = 15\left (\frac {m}{\beta }\right )^2 \end{equation} Thus, \begin{equation} \frac {\langle p_j^4\rangle -\langle p_j^2\rangle }{\langle p_j^2\rangle } = \frac {2}{3}. \end{equation} Now, let’s compute fluctuations in the instantaneous temperature. First, the average: \begin{equation} \langle T\rangle = \frac {2}{3N}\sum _{j=1}^{3N}\frac {\langle p_j^2\rangle }{2m} = \frac {2}{3N}\frac {3N}{2m}\langle p_j^2\rangle = \frac {\langle p_j^2\rangle }{m} \end{equation} Now the variance, \(\langle T^2\rangle - \langle T\rangle \), starting with \(\langle T^2\rangle \): \begin{align} \langle T^2\rangle & = \left (\frac {2}{3N}\right )^2\Bigg <\left (\sum _{j=1}^{3N}\frac {p_j^2}{2m}\right )\left (\sum _{k=1}^{3N}\frac {p_k^2}{2m}\right )\Bigg >\\ & = \left (\frac {2}{3N}\right )^2 \sum _{jk}\frac {\langle p_j^2p_k^2\rangle }{(2m)^2}\\ \label {eq:T2a} & = \left (\frac {2}{3N}\right )^2\left [9N\frac {\langle p_j^4\rangle }{(2m)^2}+9N(N-1)\frac {\langle p_j^2\rangle ^2}{(2m)^2}\right ]\\ \label {eq:T2b} & = \frac {1}{(mN)^2}\left [N\langle p_j^4\rangle +N(N-1)\langle p_j^2\rangle ^2\right )] \end{align}
Note that in going from Eq. 144 to ??, we note the fact that \begin{equation} \langle p_j^2p_k^2 \rangle = \langle p_j^2\rangle \langle p_k^2\rangle = \langle p_j^2\rangle ^2 \end{equation} since momenta are not correlated to each other. Putting these together: \begin{align} \frac {\langle T^2\rangle - \langle T\rangle ^2}{\langle T\rangle ^2} & = \frac {\frac {1}{(mN)^2}\left [N\langle p_j^4\rangle +N(N-1)\langle p_j^2\rangle ^2\right )] - \left (\frac {\langle p_j^2\rangle }{m}\right )^2}{\left (\frac {\langle p_j^2\rangle }{m}\right )^2}\\ & = \frac {N\langle p_j^4\rangle +N(N-1)\langle p_j^2\rangle ^2 - N^2\langle p_j^2\rangle ^2}{N^2\langle p_j^2\rangle ^2}\\ & = \frac {1}{N}\frac {\langle p_j^4\rangle -\langle p_j^2\rangle ^2}{\langle p_j^2\rangle ^2} = \frac {2}{3N} \end{align}
So clearly temperature fluctuates in the canonical ensemble. Of course, in the thermodynamic limit (\(N\rightarrow \infty \)), these fluctuations vanish and we perceive a “constant” temperature, but in a simulation in which we resolve the momenta of a set of \(N\) particles, we must observe that \(T\) fluctuations as shown above. We can use this fact to decide whether or not a temperature-control scheme in MD is actually resulting in sampling the canonical ensemble.
6.2.2 Velocity Rescaling: Isokinetics and the Berendsen Thermostat
“Isokinetics” refers to altering velocities on the fly to keep kinetic energy (and therefore temperature) constant. The relationship between kinetic energy and temperature results from the application of the equipartition theorem to velocity (or, equivalently, momentum) degrees of freedom: \begin{align} \label {eq:veleqpart} \frac {3}{2}Nk_BT & = \frac {1}{2}\sum _im_iv_i^2m = \sum _i\frac {p_i^2}{2m} \end{align}
Scaling every particle velocity by a factor \(\lambda \) will yield a new temperature \(T^\prime \): \begin{equation} \lambda = \sqrt {\left (T^\prime /T\right )} \end{equation} An isokinetic thermostat computes \(\lambda \) and rescales velocities at every time step. Such a thermostat cannot be used to conduct a simulation in the canonical ensemble, since it totally suppresses the required temperature fluctuations. However, isokinetics is perfectly fine to use in a warmup or initialization phase in order to prevent numerical instabilities.
The code mdlj_isok.c illustrates implementation of an isokinetic thermostat for constant-\(T\) simulation of a
Lennard-Jones fluid. The implementation uses a two parameters, isoKT and isoKi, that specify the desired
temperature and the number of time steps between applications of the rescaling. It is worth asking whether or
not occasional velocity rescaling (rather than at every step) might allow us to preserve the correct statistics.

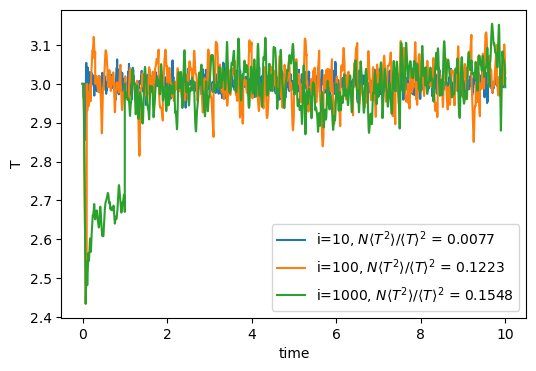

Fig. 22 shows traces of temperature vs time for three MD simulations of the Lennard-Jones fluid with 512
particles at a density of 0.50. Each simulation used a different interval size i. The quantity \(N\frac {\langle T^2\rangle - \langle T\rangle ^2}{\langle T\rangle ^2}\) is
computed for each set and values are shown in the legend. For pure canonical statistics, we know this
should be 2/3; clearly, isokinetics even at a very modest frequency utterly fails to preserve canonical
statistics.
Berendsen realized that velocity scaling could be reformulated to model energy exchange with a bath at constant \(T\) [9]. His scale factor is defined as \begin{equation} \label {eq:lam_ber} \lambda = \left [1+\frac {\Delta t}{\tau _T}\left (\frac {T_0}{T} - 1\right )\right ]^{\frac {1}{2}} \end{equation} Here, \(T_0\) is the setpoint temperature, \(\Delta t\) is the integration time step, and \(\tau _T\) is a constant called the “rise time” of the thermostat. It describes the strength of the coupling of the system to a hypothetical heat bath. The larger \(\tau _T\), the weaker the coupling; in other words, the larger \(\tau _T\), the longer it takes to achieve a given \(T_0\) after an instantaneous change from some previous \(T_0\).
The code mdlj_ber.c implements the Berendsen thermostat. The two relevant parameters are berT, the

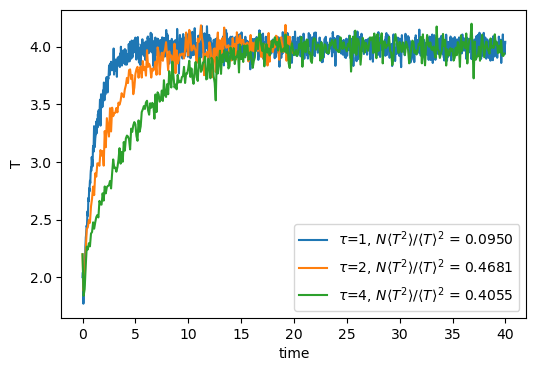

setpoint temperature, and ber_tau, the rise time. Fig. 23 shows traces of temperature vs time for three MD
simulations of the Lennard-Jones fluid with 512 particles at a density of 0.50, with temperature controlled using
the Berendsen thermostat with various values of \(\tau \). Larger \(\tau \) clearly results in longer approach times to the
setpoint temperature. Note also that the relative fluctuations of the temperature reported indicate that canonical
statistics are not being held.
Though relatively simple, velocity scaling thermostats are not recommended for use in production MD runs because they do not strictly conform to the canonical ensemble.
6.2.3 Stochastic NVT Thermostats: Andersen, Langevin, and Dissipative Particle Dynamics
The Andersen Scheme. Perhaps the simplest thermostat which does correctly sample the NVT ensemble is due to Andersen [10]. Here, at each step, some prescribed number of particles is selected, and their momenta (actually, their velocities) are drawn from a Gaussian distribution at the prescribed temperature (otherwise known as the Maxwell-Boltzmann distribution): \begin{equation} \label {eq:ens:gaus} \mathscr {P}(p) = \left (\frac {\beta }{2\pi m}\right )^{3/2} \exp \left [-\beta p^2/\left (2m\right )\right ] \end{equation} This is intended to mimic collisions with bath particles at a specified \(T\). The strength of the coupling to the heat bath is specified by a collision frequency, \(\nu \). For each particle, a random variate is selected between 0 and 1. If this variate is less than \(\nu \Delta t\), then that particle’s momenta are reset.
The code mdlj_and.c implements the Andersen thermostat for the Lennard-Jones fluid. The two relevant

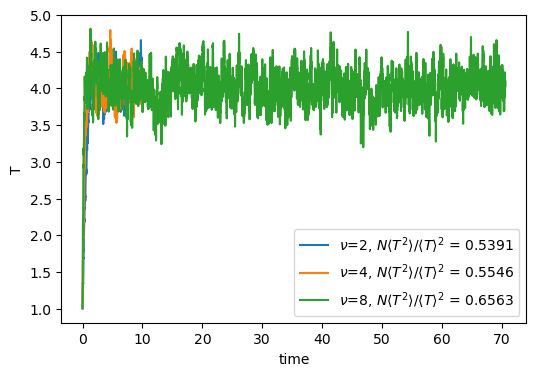

parameters are and_T, the setpoint temperature, and and_nu, the rise time. Fig. 24 shows traces of
temperature vs time for three MD simulations of the Lennard-Jones fluid with 512 particles at a density of 0.50,
with temperature controlled using the Andersen thermostat with various values of collision frequency \(\nu \). Larger \(\nu \)
results in longer approach times to the setpoint temperature, but it is also clear that for these values of \(\nu \), the
Andersen thermostat acts much more quickly than the Berendsen thermostat. Note also that the
relative fluctuations of the temperature reported indicate that canonical statistics are in fact being
held.
Although temperature fluctuations match the canonical ensemble, the Andersen thermostat destroys momentum transport because of the random reassignment of velocities; hence, there is no continuity of momentum in an Andersen LJ fluid, and therefore no proper \(\mathscr {D}\) or viscosity. Fig. 6.3 in Frenkel & Smit clearly shows that \(\mathscr {D}\), if measured from an Andersen MD run, is incorrect.
The Langevin thermostat. In the “Langevin” thermostat, at each time step all particles receive a random force and have their velocities lowered using a constant friction. [11] The average magnitude of the random forces and the friction are related in a particular way, which guarantees that the “fluctuation-dissipation” theorem is obeyed, thereby guaranteeing NVT statistics.
In this formalism, the particle-\(i\) equation of motion is modified: \begin{equation} \label {ens:md:lang} m\ddot {\bf r}_i = -\nabla _i U - m\Gamma \dot {\bf r}_i + {\bf W}_i\left (t\right ) \end{equation} Here, \(\Gamma \) is a friction coefficient with units of \(\tau ^{-1}\), and \({\bf W}_i\) is a random force that is uncorrelated in time and across particles, with a mean given by \begin{equation} \left <{\bf W}_i\left (t\right ),{\bf W}_j\left (t^\prime \right )\right > = \delta _{ij}\delta \left (t-t^\prime \right )6k_BmT\Gamma \end{equation}
The code mdlj_lan.c implements the Langevin thermostat. The two relevant parameters are lanT, the
setpoint temperature, and lan_friction, the friction \(\Gamma \). The two major elements are a force initialization at each
time step that adds in the random forces, \(\bf W\), and a slight modification to the update equations in the integrator to
include the effect of \(\Gamma \). Note that the initialization of forces to zero in the force routine has been
removed.

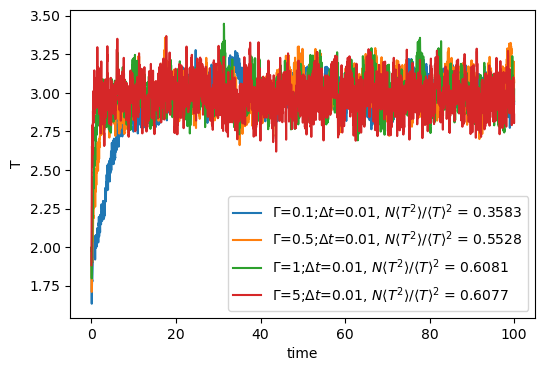

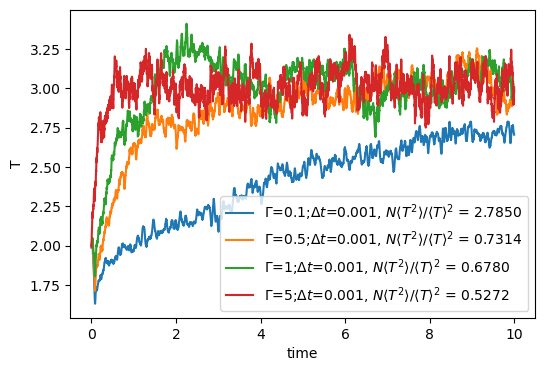

Fig. 25 shows temperature vs time for several MD simulations of a 512-particle LJ fluid at a density of 0.5; the upper plot shows data from runs with \(\Delta t\)=10\(^{-3}\), and the lower plot \(\Delta t\)=10\(^{-2}\), each showing four values of \(\Gamma \). Relative temperature fluctuations indicate weak agreement with canonical statistics that improves for the lower values of \(\Delta t\).
One advantage of the Langevin thermostat (and to a limited extent, the Andersen thermostat and other stochastic-based thermostats) is that we can get away with a larger time step than in NVE simulations. At a density of \(\rho \) = 0.8442 and a mean temperature \(T\) = 1.0, an NVE simulation is unstable for time-steps above about \(\Delta t\) = 0.004. We can, however, run a Langevin dynamics simulation with a friction \(\Gamma \) = 1.0 stably with a time-step as large as \(\Delta t\) = 0.01 or even higher. This has proven invaluable in simulations of more complicated systems that simple liquids, namely linear polymers, which have very long relaxation times. MD with the Langevin thermostat is the method of choice for equilibrating samples of liquids of long bead-spring polymer chains.
Of course, the drawback of most stochastic thermostats (one exception is discussed next) is that momentum transfer is destroyed. So again, it is unadvisable to use Langeving or Andersen thermostats for runs in which you wish to compute diffusion coefficients. The recommendation stands: use NVE to compute properties, and use thermostats for equilibration only.
The Dissipative Particle Dynamics thermostat. The DPD thermostat [12, 13] adds pairwise random and dissipative forces to all particles, and has been shown to preserve momentum transport. Hence, it is the only stochastic thermostat so far that should even be considered for use if one wishes to compute transport properties.
The DPD thermostat is implemented by slight modification of the force routine to add in the pairwise random and dissipative forces. For the \(ij\) pair, the dissipative force is defined as \begin{equation} {\bf f}_{ij}^D = -\gamma \omega ^D\left (r_{ij}\right )\left ({\bf v}_{ij}\cdot \hat {\bf r}_{ij}\right )\hat {\bf r}_{ij} \end{equation} Here, \(\gamma \) is a friction coefficient, \(\omega \) is a cut-off function for the force as a function of the scalar distance between \(i\) and \(j\) which simply limits the interaction range of the dissipative (and random) forces, \({\bf v}_{ij} = {\bf v}_i - {\bf v}_j\) is the relative velocity of \(i\) to \(j\), and \(\hat {\bf r}_{ij} = {\bf r}_{ij}/r_{ij}\) is the unit vector pointing from \(j\) to \(i\). The random force is defined as \begin{equation} {\bf f}_{ij}^R = \sigma \omega ^R\left (r_{ij}\right )\zeta _{ij}\hat {\bf r}_{ij} \end{equation} Here, \(\sigma \) is the strength of the random force, \(\omega ^R\) is a cut-off, and \(\zeta _{ij}\) is a Gaussian random number with zero mean and unit variance, and \(\zeta _{ij} = \zeta _{ji}\).
The update of velocity uses these new forces: \begin{equation} \label {eq:dpd_update} {\bf v}_i\left (t + \Delta t\right ) = {\bf v}_i\left (t\right ) - \frac {\Delta t}{m}\nabla _iU + \frac {\Delta t}{m}{\bf f}_i^D + \frac {\sqrt {\Delta t}}{m}{\bf f}_i^R \end{equation} where
The parameters \(\gamma \) and \(\sigma \) are linked by a fluctuation-dissipation theorem: \begin{equation} \sigma ^2 = 2\gamma k_B T \end{equation} So, in practice, one must specify either \(\gamma \) or \(\sigma \), and then a setpoint temperature, \(T\), in order to use the DPD thermostat.
The cutoff functions are also related: \begin{equation} \omega ^D\left (r_{ij}\right ) = \left [\omega ^R\left (r_{ij}\right )\right ]^2 \end{equation} This is the only real constraint on the cutoffs; we are otherwise allowed to use any cutoff we like. The simplest uses the cutoff radius of the pair potential, \(r_c\): \begin{equation} \omega \left (r\right ) = \begin {cases} 1 & r < r_c\\ 0 & r > r_c \end {cases} \end{equation} Note that, with this choice, \(\left [\omega ^R\left (r_{ij}\right )\right ]^2\) = \(\omega ^R\left (r_{ij}\right )\) = \(\omega ^D\left (r_{ij}\right ) = \omega \).
The code mdlj_dpd.c implements the DPD thermostat in an MD simulation of the Lennard-Jones liquid.
The major changes (compared to mdlj.c) are to the force routine, which now requires several more arguments,
including particle velocities, and parameters for the thermostat. Inside the pair loop, the force on each
particle is updated by the conservative, dissipative, and random pairwise force components. The
random force is divided by \(\sqrt {\Delta t}\) so that the velocity Verlet algorithm need not be altered to implement
Eq. 155.

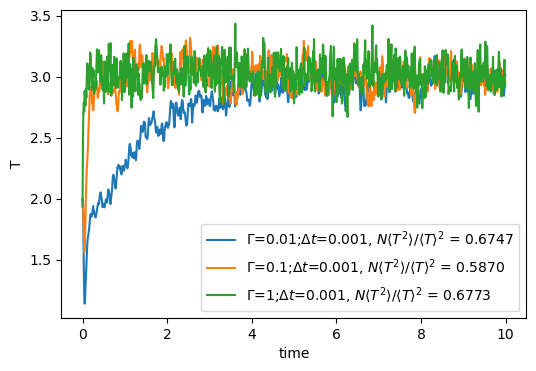

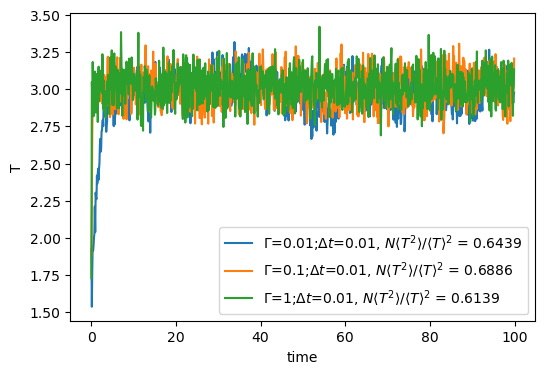

The behavior of the DPD thermostat can be assessed in a similar fashion as was the Berendsen thermostat above. Here I’ve run several MD simulations of the LJ fluid at a density of 0.84 with 512 particles for 10,000 steps, with various values of \(\Gamma \) and \(\Delta t\). Fig. 26 shows the temperature vs time for these various runs. We see that increased friction leads to faster approach to the setpoint temperature, and that temperature fluctuations seem to conform to canonical statistics pretty well.
6.2.4 The Nosé-Hoover Chain
The final thermostat we consider is one based on the extended Lagrangian formalism, which leads to a deterministic trajectory; i.e., there are no random forces or velocities to deal with. The most common and so far most reliable thermostat of this kind is the Nosé-Hoover thermostat. This thermostat can be implemented as a “single” or a “chain”; here, we consider a chain.
The basic idea of the Nosé-Hoover thermostat is to use a friction factor to control particle velocities. This friction factor is actually the scaled velocity, \(v_{\xi _1}\), of an additional and dimensionless degree of freedom, \(\xi _1\). This degree of freedom has an associated “mass”, \(Q_1\), which effectively determines the strength of the thermostat. The equations of motion obeyed by this additional degree of freedom guarantee that the original degrees of freedom (\({\bf r}^N\), \({\bf p}^N\)) sample a canonical ensemble. This degree of freedom is the terminus of a chain of similar degrees of freedom, each with their own mass. The chain has a total of \(M\) “links.” The overall set of equations of motion are:
The main advantage of the Nosé-Hoover chain thermostat is that the dynamics of all degrees of freedom
are deterministic and time-reversible. No random numbers are used. The code mdlj_nhc.c implements an \(M\) = 2
Nosé-Hoover chain thermostat in an MD simulation of an Lennard-Jones fluid, by implementing Algorithms 30,
31, and 32 from Frenkel & Smit. The relevant parameters are nhcT, the setpoint temperature, and

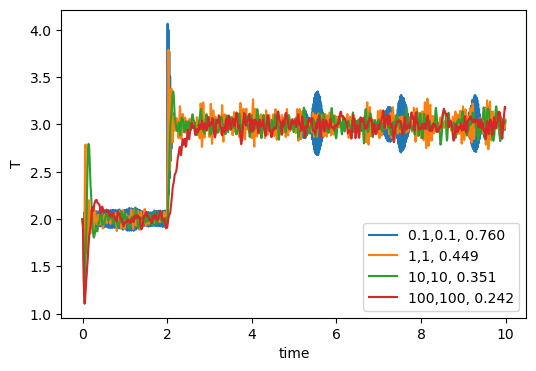

nhcQ, the two masses. Fig. 27 illustrates the use of the NHC thermostat on an N=512, \(\rho \) = 0.84 LJ
system.
6.3 Molecular Dynamics at Constant Pressure: The Berendsen Barostat
As with temperature control, there are different classes of pressure control for MD simulation. The only one we consider here is the length-scaling technique of Berendsen. It should be noted that one can also use the the extended Nosé-Hoover (extended Lagrangian) formalism of Martyna, which is mentioned in F&S; in the interest of time, we will forego a discussion of this technique.
Here we consider implementation of the Berendsen barostat [9]. Recall that the working definition of instantaneous pressure, \(P\), is given by: \begin{equation} P = \rho T + {\rm vir}/V \end{equation} where \(\rm vir\) is the virial: \begin{equation} {\rm vir} = \frac {1}{3}\sum _{i>j} {\bf f}\left (r_{ij}\right )\cdot {\bf r}_{ij} \end{equation} and \(V\) is the system volume. \({\bf f}\left (r_{ij}\right )\) is the force exerted on particle \(i\) by particle \(j\).
Consider a cubic system, where \(V = L^3\). The Berendsen barostat uses a scale factor, \(\mu \), which is a function of \(P\), to scale lengths in the system:
\(\mu \) is given by \begin{equation} \mu = \left [1-\frac {\Delta t}{\tau _P}\left (P_0 - P\right )\right ]^{1/3} \end{equation} Here, \(\Delta t\) is the integrator time-step, \(\tau _P\) is the “rise time” of the barostat, and \(P_0\) is the setpoint pressure. Berendsen discusses the tensor-based analog for non-cubic systems [9].
The code mdlj_berp.c implements the Berendsen barostat. The relevant parameters are berP, the

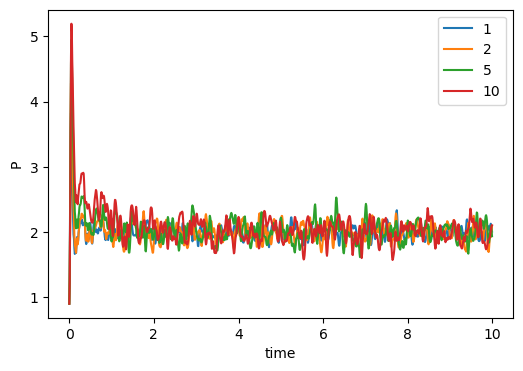

setpoint pressure, and ber_tau, the rise time. Fig. 28 shows pressure vs time for four MD simulations of 512
particles with a setpoint pressure of 2.
Length scaling at each time step using a global scale factor, while effective in this instance, can be lead to violent oscillations of pressure in more ordered systems, and is therefore not recommended for production MD runs. However, it is common to find length scaling barostats used in the literature without reporting how effective they are, measured at least in terms of pressure and its fluctuations. But they can be useful for pre-equilibrating samples at some \(P\) prior to beginning an NVE simulation during which one hopes the instantaneous pressure fluctuates about the previous setpoint. It is easy to implement both the Berendsen thermostat and barostat in the same simulation program, to allow pre-equilibration at setpoint \(T\) and \(P\).
